Product Summary

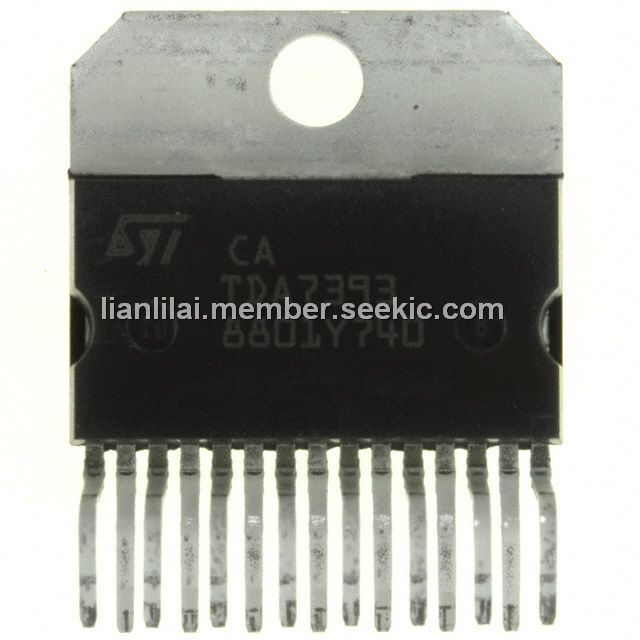

The TDA7393 is a new technology class AB Audio Power Amplifier in Multiwatt15 package designed for high end car radio applications.
Parametrics
Absolute maximum ratings: (1)Power dissipation, Tcase = 75℃ (see derating curve):50W; (2)Junction Temperatur:150℃; (3)Operating Ambient Temperature:-40℃ to 85℃; (4)Storage Temperature:-55℃ to 150 ℃; (5)Operating Supply Voltage:18V; (6)DC Supply Voltage:28V; (7)Peak Supply Voltage (t = 50ms):50V.
Features
Features: (1)lowdistortion; (2)lowoutput noise; (3)st-by function; (4)mute function; (5)auto-mute at min. supply voltage; (6)detection; (7)lowexternal component count:internally fixed gain (32dB),noexternal compensation, nobootstrap capacitors; (8)additionalmono input; (9)load dump voltage; (10)fortuitous open GND; (11)reverse battery; (12)ESD protection.

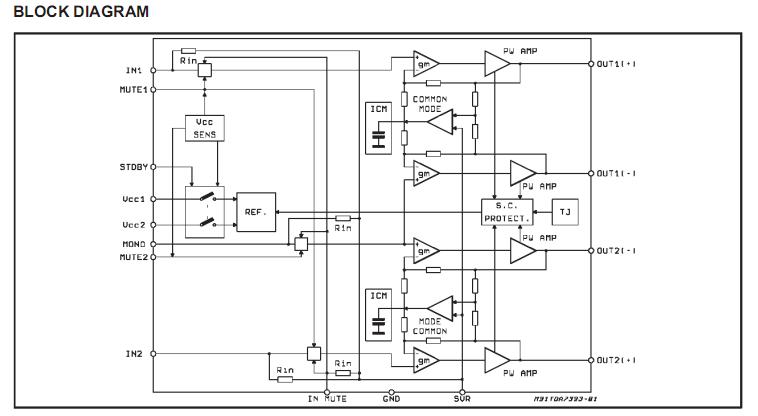

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7393 |
STMicroelectronics |
Audio Amplifiers 2X32W Bridge Amp |
Data Sheet |
|
|
||||||||||||
