Product Summary

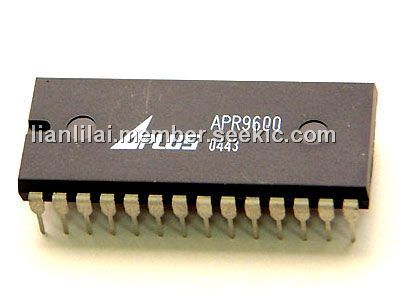

The APR9600 is a single-chip Voice Recording and Playback Device. It offers true single-chip voice recording, non-volatile storage, and playback capability for 40 to 60 seconds.
Parametrics
Absolute maximum ratings: (1)Power Supply voltage:-0.3V to 6.5V; (2)Input Voltage:-1.0V to VCC+1.0V; (3)Storage Temperature:-65℃ to 150℃; (4)Temperature Under Bias:-65℃ to 125℃; (5)Lead Temperature:-0.3℃ to 300℃.
Features
Features: (1)Single-chip, high-quality voice recording & playback solution:No external ICs required,Minimum external components; (2)Non-volatile Flash memory technology:No battery backup required; (3)User-Selectable messaging options:Random access of multiple fixed-duration messages,Sequential access of multiple variable-duration messages; (4)User-friendly, easy-to-use operation:Programming & development systems not required,Level-activated recording & edge-activated play back switches; (5)Low power consumption:Operating current: 25 mA typical, Standby current: 1 uA typical, Automatic power-down; (6)Chip Enable pin for simple message expansion.

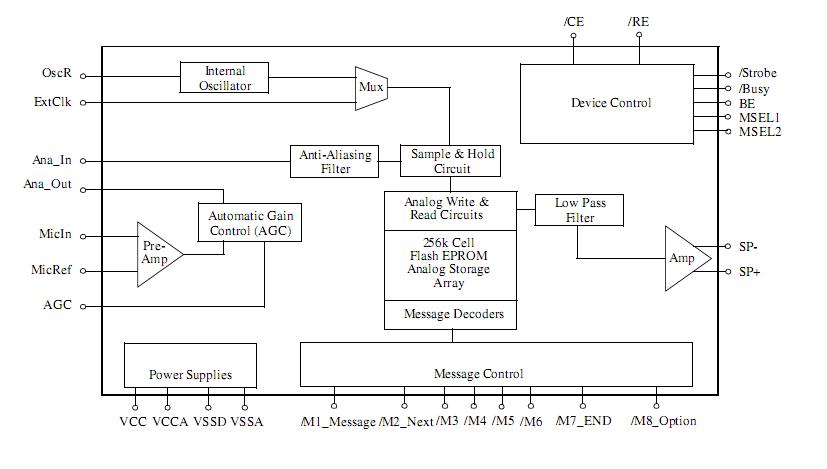

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 APR9600 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
APR9301 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
APR9301- V2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
APR9301-V2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
APR9600 |
Other |
|
Data Sheet |
Negotiable |
|
||||
