Product Summary

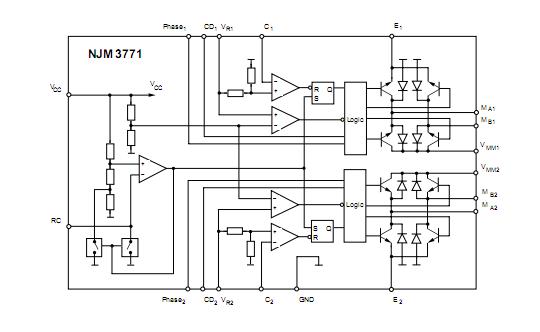

The NJM3771D2 is a stepper motor driver. It contains a clock oscillator, which is common for both driver channels; a set of comparators and flip-flops imple menting the switching control; and two H-bridges with internal recirculation diodes.

Parametrics

Absolute maximum ratings: (1)Logic supply:0V to 7V; (2)Motor supply:0V to 45V; (3)Logic inputs:-0.3V to 6V; (4)Comparator inputs:-0.3V to VCC; (5)Reference inputs:-0.3V to 7.5V; (6)Motor output current:-700mA to +700mA; (7)Logic inputs:-10mA; (8)Analog inputs:-10mA; (9)Oscillator charging current:5mA; (10)Operating junction temperature:-40℃ to +150℃; (11)Storage temperature:-55℃ to +150℃.

Features

Features: (1)Dual chopper driver; (2)650 mA output current per channel; (3)Selectable slow/fast current decay for improved high-speed microstepping; (4)Specially matched to Dual DAC NJU39610; (5)Packages DIP22 / EMP24(Batwing) / PLCC28.
