Product Summary

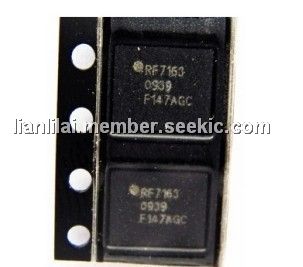

The RF7163 is a quad-band GSM/GPRS, Class 12 compliant transmit module with four interchangeable receive ports. The RF7163 builds upon RFMD’ s leading power amplifier with PowerStar integrated power control technology, pHEMT switch technology, and integrated transmit filtering for best-in-class harmonic performance. The applications of the RF7163 are 3V Quad-Band GSM/GPRS Handsets, GSM850/EGSM900/DCS1800/PCS1900 Products, GPRS Class 12 Compliant, Portable Battery-Powered Equipment.
Parametrics
RF7163 absolute maximum ratings: (1)Supply Voltage:-0.3 to +6.0 V; (2)Power Control Voltage (VRAMP):-0.3 to +1.8 V; (3)Input RF Power:+10 dBm; (4)Max Duty Cycle:50 %; (5)Output Load VSWR:20:1; (6)Operating Case Temperature:-20 to +85℃; (7)Storage Temperature:-55 to +150℃.
Features
RF7163 features: (1)Enhanced Performance Transmit Module; (2)No External Routing; (3)High Efficiency at Rated POUT VBATT=3.5V; (4)Low RX Insertion Loss; (5)Four Symmetrical RX Ports; (6)0dBm to 6dBm Drive Level, >50dB of Dynamic Range; (7)Integrated Power Flattening Circuit; (8)VBATT Tracking Circuit.

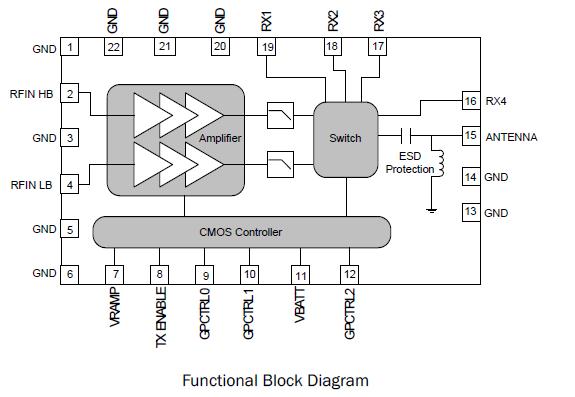

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 RF7163 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
RF7115 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RF7163 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RF7166 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RF7168 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RF7169 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RF716x Product Family |
Other |
|
Data Sheet |
Negotiable |
|
||||
