Product Summary
The CA3089E is a monolithic integrated circuit that provides all the functions of a comprehensive FM-IF system.
Parametrics
Absolute maximum ratings: (1)Supply Voltage Between V+ and Frame GND: 16V; (2)Supply Voltage Between V+ and Substrate GND: 16V; (3)DC Current (Out of Delayed AGC): 2mA.
Features
Features: (1)For FM IF Amplifier Applications in High-Fidelity, Automotive, and Communications Receivers; (2)includes: IF Amplifier, Quadrature Detector, AF Preamplifier, and Specific Circuits for AGC, AFC, Muting (Squelch), and Tuning Meter; (3)Exceptional Limiting Sensitivity; (4)Low Distortion; (5)Single-Coil Tuning Capability; (6)High Recovered Audio; (7)Provides Specific Signal for Control of Interchannel Muting (Squelch); (8)Provides Specific Signal for Direct Drive of a Tuning Meter; (9)Provides Delayed AGC Voltage for RF Amplifier; (10)Provides a Specific Circuit for Flexible AFC; (11)Internal Supply-Voltage Regulators.

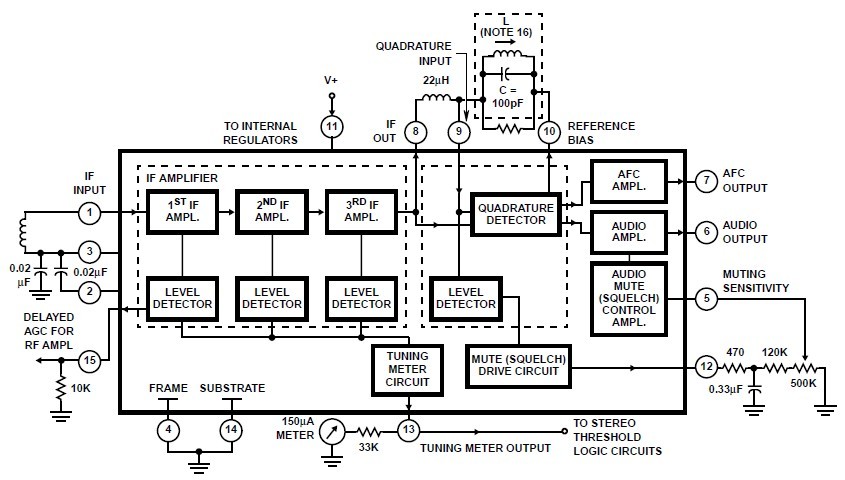

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CA3089E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
