Product Summary

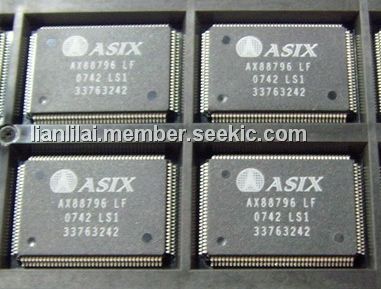

The AX88796LF is a 10/100BASE 3-in-1 Local CPU Bus Fast Ethernet Controller with Embedded SRAM.
Parametrics
Absolute maximum ratings: (1)Operating Temperature, Ta: 0 to +85 ℃; (2)Storage Temperature, Ts: -55 to +150 ℃; (3)Supply Voltage, Vdd: -0.3 to +4.6 V; (4)Input Voltage, Vin: -0.3 to 5.5V; (5)Output Voltage, Vout: -0.3 to Vdd+0.5 V; (6)Lead Temperature (soldering 10 seconds maximum), Tl: -55 to +220 ℃.
Features
Features: (1)Highly integrated with embedded 10/100Mbps MAC, PHY and Transceiver; (2)Compliant with IEEE 802.3/802.3u 100BASE-TX/FX specification; (3)NE2000 register level compatible instruction; (4)Single chip local CPU bus 10/100Mbps Fast Ethernet MAC Controller; (5)Support both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series and MC68K series CPU; (6)Support both 10Mbps and 100Mbps data rate; (7)Support both full-duplex or half-duplex operation; (8)Provides an extra MII port for supporting other media. For example, Home LAN application; (9)Support EEPROM interface to store MAC address; (10)External and internal loop-back capability; (11)Support Standard Print Port for printer server application; (12)Support upto 3/1 General Purpose In/Out pins; (13)128-pin LQFP low profile package; (14)Low Power Consumption, typical under 100mA; (15)0.25 Micron low power CMOS process. 25MHz Operation, Pure 3.3V operation with 5V I/O tolerance.
