Product Summary

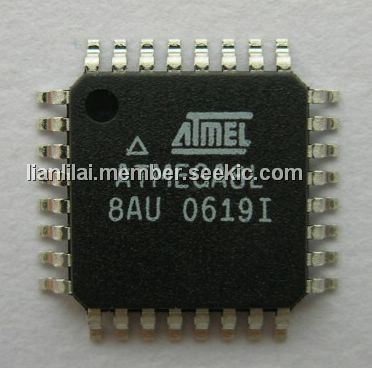

The ATMEGA8L-8AU is a low-power CMOS 8-bit microcontroller.

Parametrics

Absolute maximum ratings: (1)Operating Voltages: 2.7 - 5.5V; (2)Speed Grades: 0 - 8MHz.

Features

Features: (1)Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode; (2)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (3)Real Time Counter with Separate Oscillator; (4)Three PWM Channels; (5)8-channel ADC in TQFP and QFN/MLF package Eight Channels 10-bit Accuracy; (6)6-channel ADC in PDIP package Six Channels 10-bit Accuracy; (7)Byte-oriented Two-wire Serial Interface; (8)Programmable Serial USART; (9)Master/Slave SPI Serial Interface; (10)Programmable Watchdog Timer with Separate On-chip Oscillator; (11)On-chip Analog Comparator.

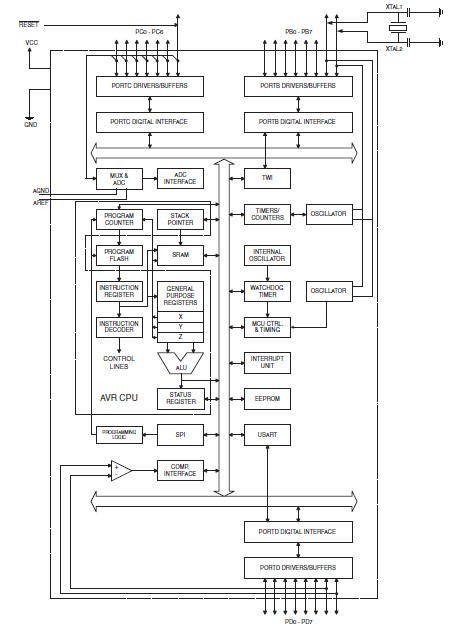

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ATmega8L-8AU
ATmega8L-8AU
Atmel
8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 23 I/O Pins
Data Sheet
0-1: $2.13
1-10: $1.78
10-25: $1.34
25-100: $1.21
ATMEGA8L-8AUR
ATMEGA8L-8AUR
Atmel
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-8MHz
Data Sheet
0-1670: $1.22
1670-2000: $1.22
